Introducing the Covey

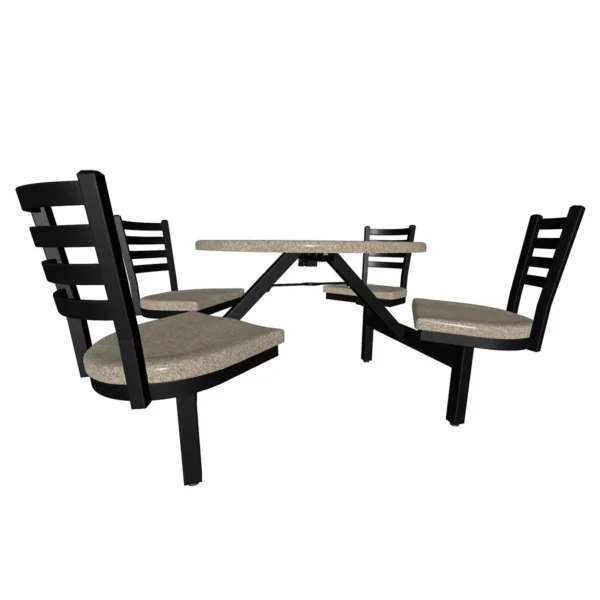

Covey is well built cluster seating to perform as dependably in an outdoor courtyard as it does inside the cafeteria. This indoor and outdoor food court cluster seating system offers fiberglass and Corian® tops and seats rated for extreme environments . Covey offers strong, sturdy frame design with fixed or swivel seats in standard and pub heights with glides, anchor or cored in mounting options. Covey comes in two, four seat, or six seat configuration in 29 inch or 42 inch height plus wheelchair accessible models.

Details

Covey is engineered for the reality of shared institutional spaces where tables need to hold up through every season, get wiped down quickly between meal periods, and continue looking and performing well for years without significant maintenance. Fiberglass seats are comfortably shaped and designed to allow rainwater to run off cleanly, so outdoor seats dry quickly after precipitation and do not pool water that discourages use or creates a hygiene issue. Fixed seats are standard, providing a stable and predictable seating arrangement for cafeteria settings where traffic flow and seating density need to be consistent and controlled across a full meal period. Glide, anchor, and cored in mounting options cover every installation scenario from a flexible indoor food court setup to a permanent outdoor concrete installation that will serve the campus for a generation.

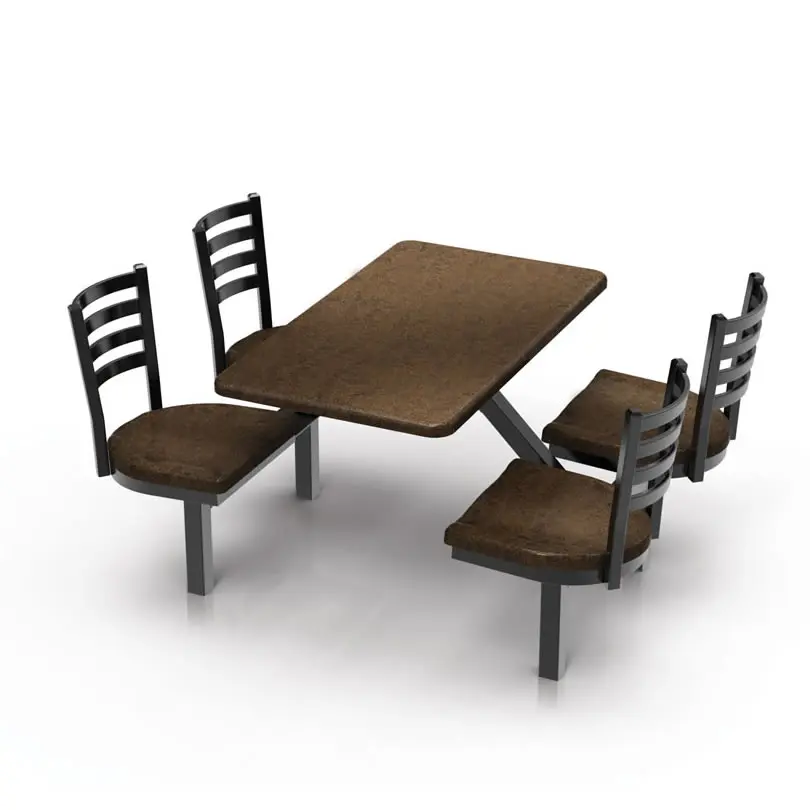

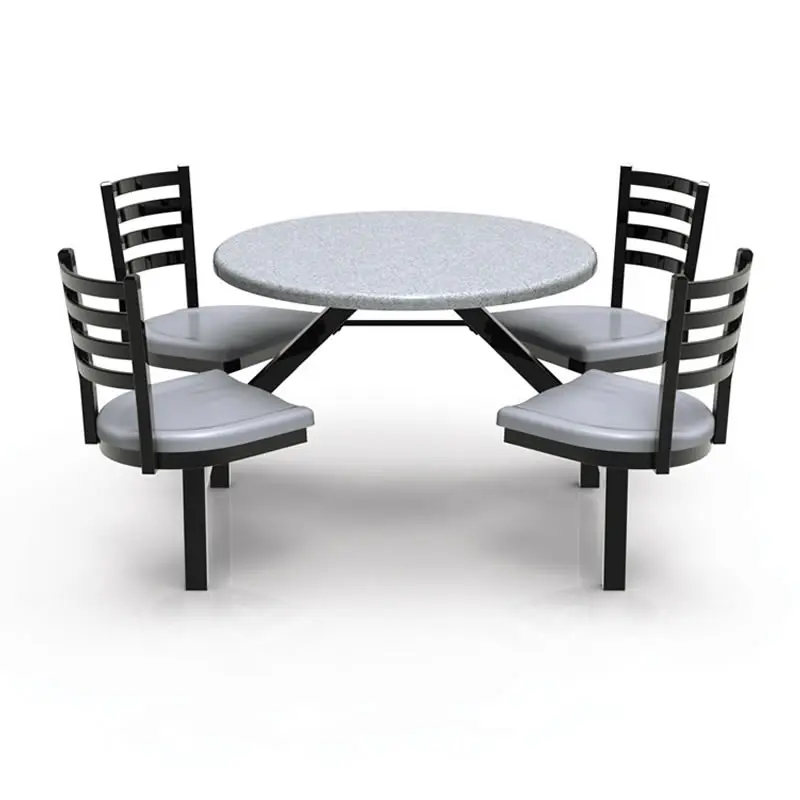

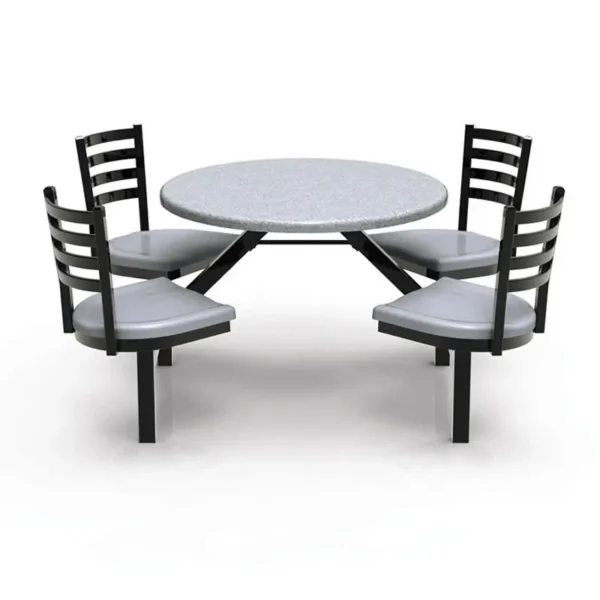

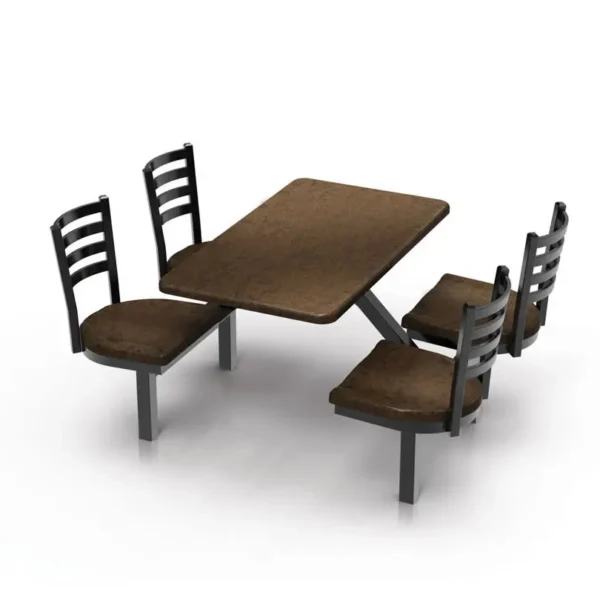

What sets Covey apart is the breadth of its configuration range and the ability to deliver a matching indoor and outdoor dining environment from the same product family. Round tables at 36- and 48-inch diameters in standard 29-inch height and 42-inch pub height support 2, 4, and 6 seat configurations for the food court environments where varied seat counts help manage flow and density. Rectangular tables at 24 by 42 and 24 by 96 and 48 by 60-inch tops extend the range for large format indoor food courts where rows of coordinated cluster seating create a coherent dining room at a scale that round tables alone cannot achieve. Wheelchair accessible configurations are available on 36-inch round, 48-inch round, and select rectangular models, ensuring that the dining environment meets accessibility requirements for all students without requiring a separate product specification. Optional umbrella holes on select models extend outdoor usability in warm and sunny weather. Custom graphics and logos are available on round fiberglass tops, giving campuses and schools the ability to incorporate institutional identity directly into the table surface for a finished, branded result that generic cafeteria seating cannot deliver.

Covey’s outdoor durability begins with the fiberglass tops and seats, which are a combination of resin and glass fibers creating a fiber reinforced plastic that is heat, chemical, and UV resistant, rated for extreme weather, and available in seven standard colors for both seats and tops. Corian® tops are a solid nonporous acrylic resin and natural mineral surface that is stain and weather resistant, available in 14 colors and compatible with custom graphics and logos incorporated directly into the surface. All Covey frames are constructed from 11-gauge steel tubing with an outdoor grade, electrostatically applied, baked on epoxy powder coat that resists abrasion, marring, and scratching in both indoor and outdoor environments through years of institutional service. SmartEdge with antimicrobial and antifungal additives is standard on round indoor tops, and EdgeGuard™ is standard on rectangular indoor tops, giving Covey the same edge treatment quality that Palmer Hamilton applies across its full product line. Palmer Hamilton backs Covey with a 5-year warranty and ships it from Elkhorn, Wisconsin, because the food courts, courtyards, and cafeterias where students and communities gather deserve furniture built and supported to that standard. Do More with Your Space™.

Benefits

One Seating System for Indoor and Outdoor Spaces

Covey’s fiberglass and Corian® tops and seats are rated for extreme weather and UV exposure, while the laminate and wood options serve indoor settings, allowing a campus or school to extend the same cluster seating aesthetic from the cafeteria interior to the patio or courtyard without purchasing a separate outdoor product line. A unified indoor and outdoor look reinforces the design intent of the overall dining environment and simplifies procurement, specification, and long-term maintenance management.

Accessible, Configurable, and Ready for Every Student



Wheelchair accessible options are available on multiple Covey models, swivel seats upgrade fixed configurations for social environments, and the range from two seat rectangular units to eight seat large format tables covers every dining format a food court needs to serve. Custom fiberglass logos and graphics bring institutional identity into the dining space directly on the table surface, creating a sense of belonging and school spirit that generic cafeteria cluster seating cannot provide.

Built for the Long Term in the Toughest Environments

11 gauge steel frames with outdoor grade epoxy powder coat, fiberglass seats shaped for rain drainage, Corian® tops rated for extreme weather, and SmartEdge and EdgeGuard™ edge treatments give Covey the construction depth to perform outdoors through seasons of rain, UV exposure, temperature change, and daily cleaning that would degrade a lesser product. Palmer Hamilton’s 5-year warranty reflects the confidence the company places in every unit that leaves Elkhorn, Wisconsin.

Features

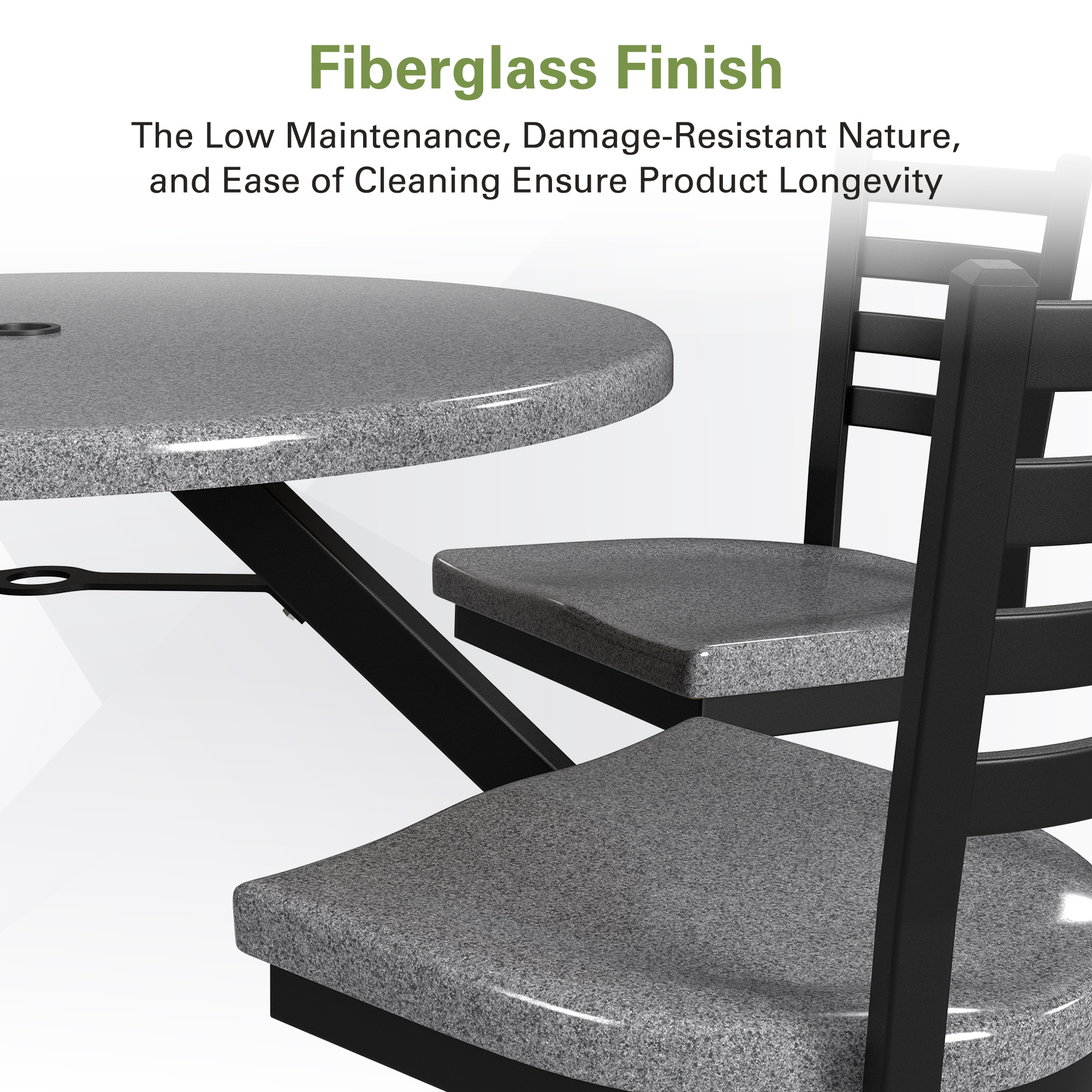

Fiberglass and Corian® Outdoor Rated Tops and Seats

Covey’s outdoor tops and seats use thermoformed fiberglass and Corian® solid surface materials that are heat, UV, chemical, and stain resistant, rated for extreme weather conditions, and available in standard color palettes for both materials that coordinate across seat and top selections. Custom graphics and logos are available on round fiberglass tops, giving institutions the ability to incorporate school or campus identity into the dining surface for a branded result that strengthens the character of the overall food court environment.

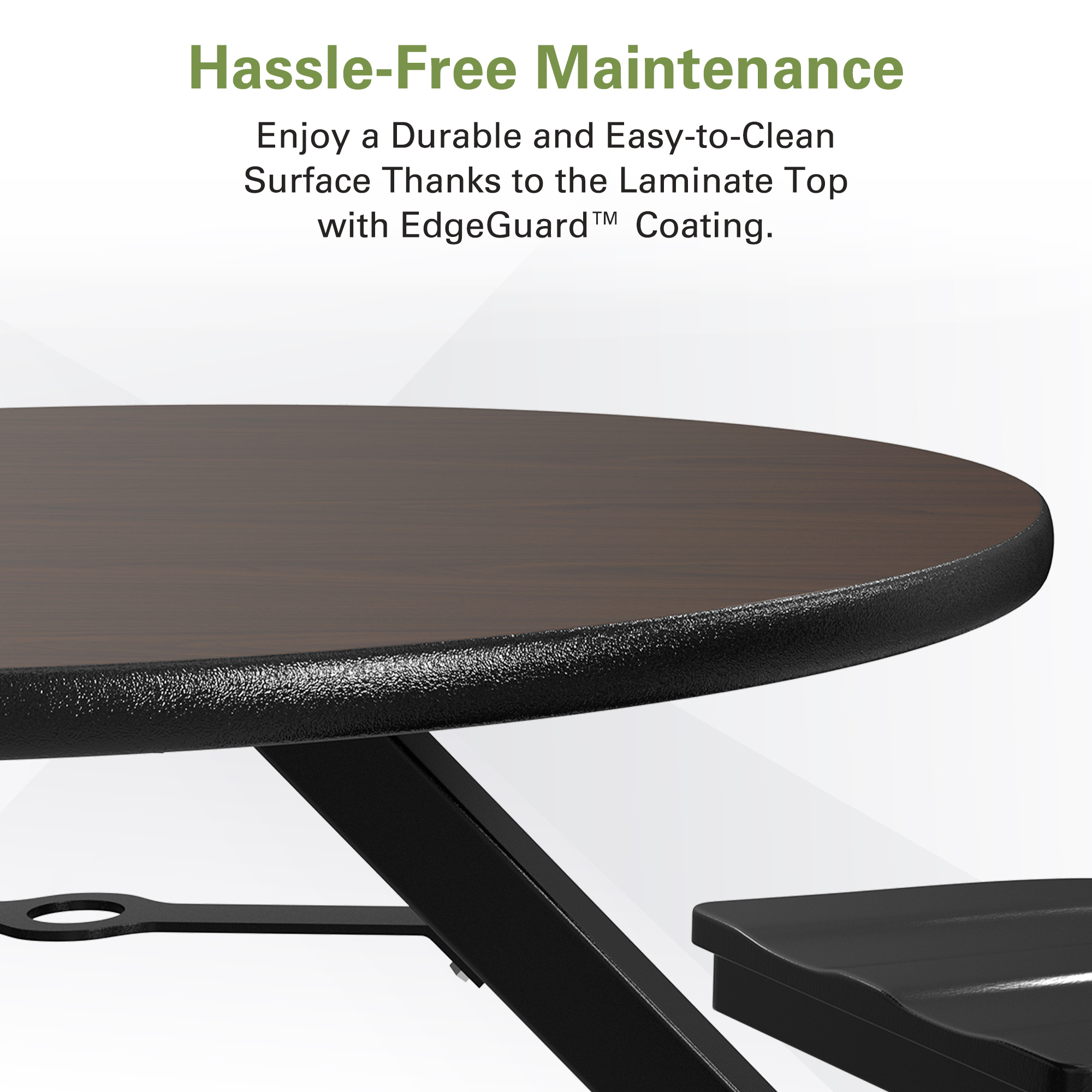

SmartEdge and EdgeGuard™ Edge Treatments

SmartEdge with antimicrobial and antifungal properties is standard on round indoor Covey tops, and EdgeGuard™ sprayed on polyurea is standard on rectangular indoor tops, giving every Covey installation the moisture resistance, tamper resistance, and food trap free edge profile that Palmer Hamilton specifies across its full product line. SmartEdge contains 60 percent renewable bio based material content and maintains its edge integrity and antimicrobial performance through the cleaning cycles and institutional use that a school or campus food court demands every day.

Three Mounting Options for Every Installation Context

Covey is available with glide, anchor, or cored in mounting to cover every installation scenario from a temporary indoor food court setup to a permanent outdoor concrete courtyard installation. Glides use nickel plated steel with a white nylon glide on a 3/8-inch threaded rod. Anchors use 16-gauge stainless steel plate with a 3/8-inch zinc plated bolt. Cored in units require a 3 inch to 4-inch round hole drilled into concrete and filled with epoxy cement for a permanent, maintenance free installation.

Core Attributes

Attribute
Value
Available Configurations
2, 4, 6, and wheelchair accessible models
Table Heights
29 inch (standard) and 42 inch (pub)
Top Options
Fiberglass (indoor and outdoor), Corian® (indoor and outdoor), laminate (indoor)
Seat Options
Fiberglass (outdoor standard), wood stain (indoor standard), swivel at upcharge
Mounting Options
Glides, anchors, and cored in
Wheelchair Accessible
Available on select round and rectangular models

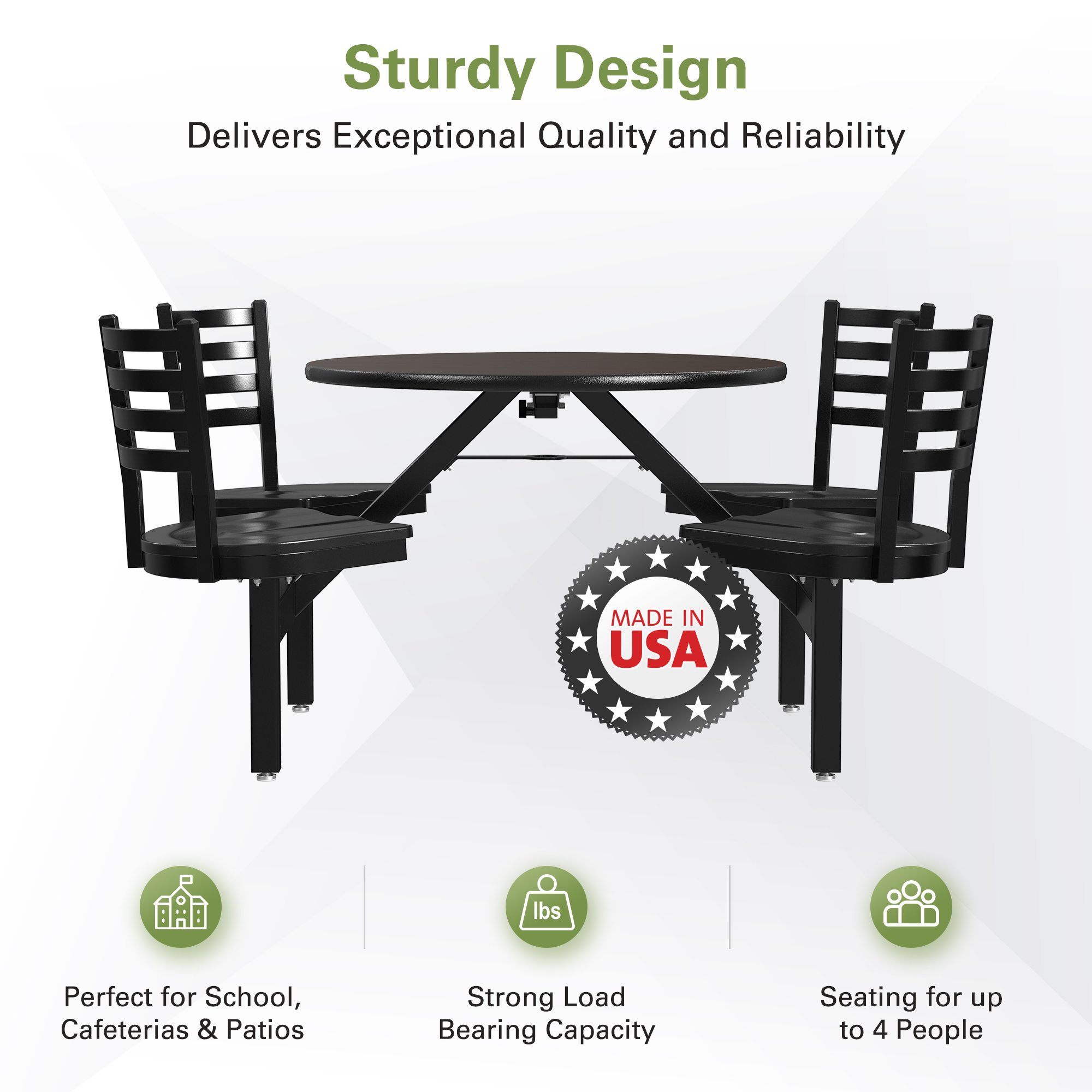

Frame Construction
11-gauge steel tubing; outdoor grade epoxy powder coat
Frame Colors
Black (BLK), Chameleon (CHA), Metallic Silver (MS) standard; 10 custom colors available
Custom Graphics
Available on round fiberglass tops
Umbrella Hole
Optional on select models at upcharge; umbrella not included
Warranty
5-year warranty (some exclusions may apply; see palmerhamilton.com/resources/warranty)
Ships
KD (knock down); assembly required
Made In
USA

Full Specifications

Specification
Detail
Table Heights
29 inch (standard) and 42 inch (pub)
Indoor Table Top Construction
1 and one eighth inch M3 industrial grade particleboard; HPL decorative laminate on top; balanced phenolic backer on bottom
Outdoor Top Material Option 1
Fiberglass (fiber reinforced plastic); heat, chemical, and UV resistant; 7 standard colors
Outdoor Top Material Option 2
Corian® solid surface (acrylic resin and natural mineral); stain and weather resistant; 14 colors available
Edge Treatment Standard (Round Indoor)
SmartEdge poured urethane; antimicrobial and antifungal additives; 60% renewable bio based content; bullnose profile
Edge Treatment Standard (Rectangular Indoor)
EdgeGuard™ sprayed on polyurea; eased profile
Edge Option
PVC 3mm; available in multiple colors
Fiberglass Colors (Tops and Seats)
Steel Gray, Cappuccino, Fleckstone, Lapis, Obsidian
Fiberglass Colors (Seats Only)
Graphite, Ruby, Dusk, Gunmetal, Apple Red

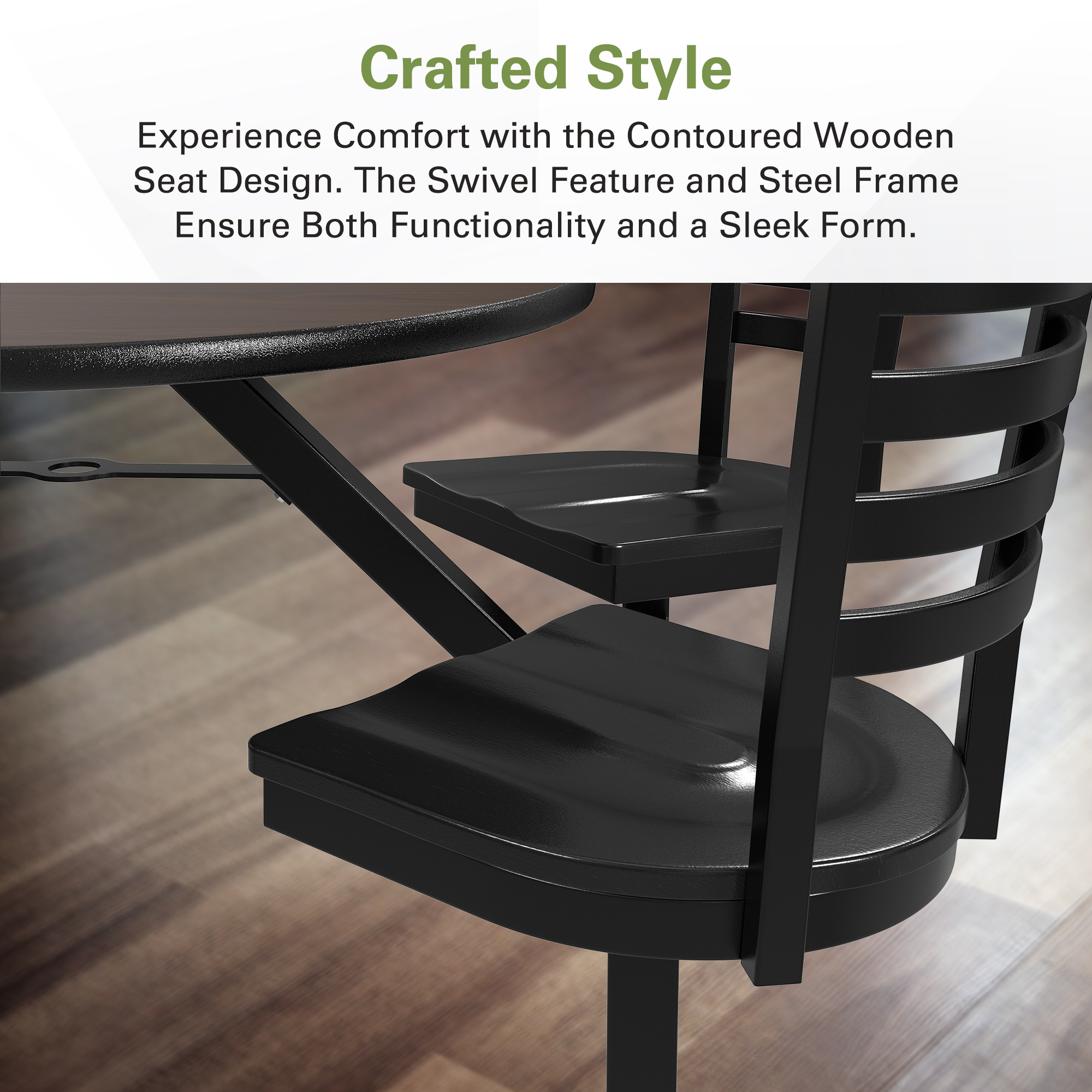

Indoor Wood Seat Stains
Natural, Cherry, Walnut, Mahogany, Solid Black
Seat Dimensions (Fiberglass)
16.81 inches wide by 16.65 inches deep
Seat Dimensions (Wood)
17 inches wide by 16.125 inches deep
Fixed Seat
Standard on all models

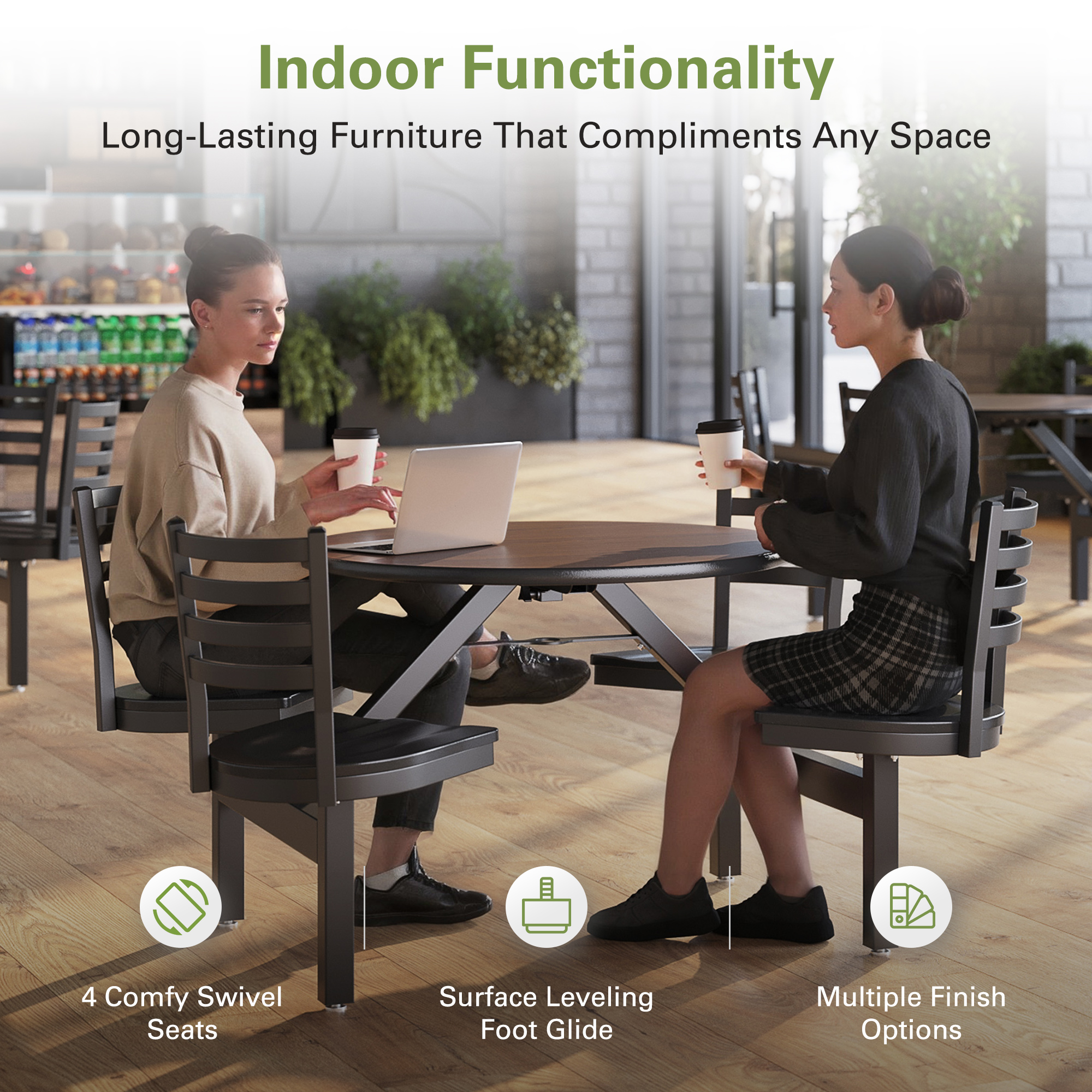

Swivel Seat
Optional at upcharge; commercial grade; powder coated; steel ball bearings; memory return; available in fiberglass or wood
Frame Construction
11 gauge steel tubing; electrostatically applied baked on epoxy powder coat

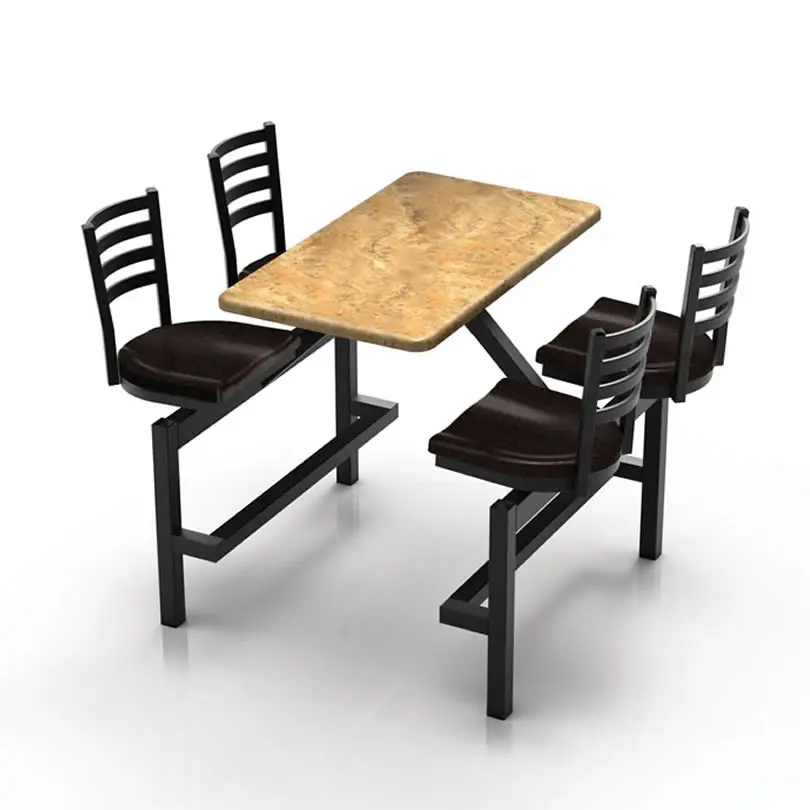

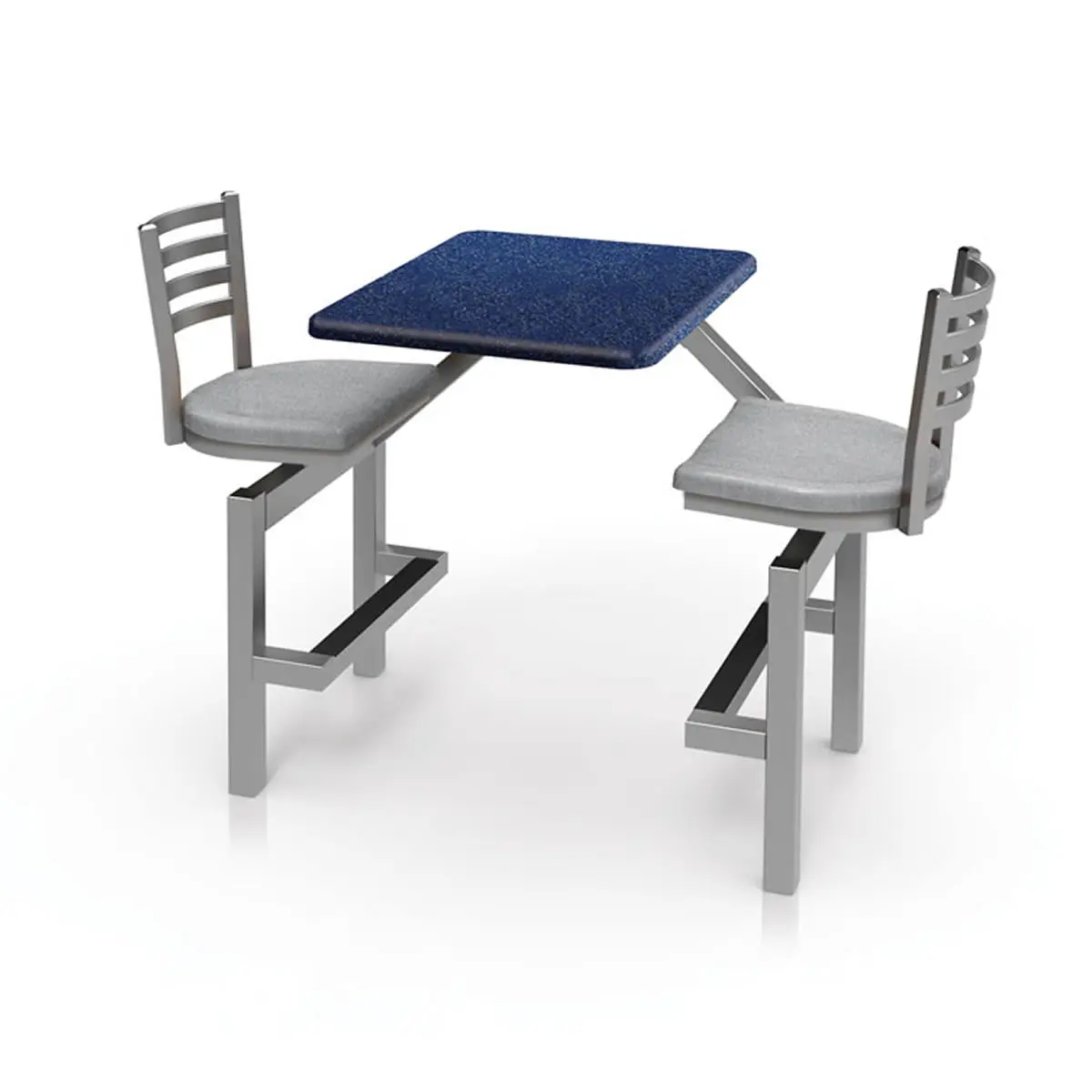

Pub Height Foot Rail
Heavy duty with non-skid surface on 42 inch height tables
Frame Colors Standard
Black Textured Powdercoat (BLK), Chameleon Textured Powdercoat (CHA), Metallic Silver (MS); 10 premium colors available
Mounting Option (Glides)
Nickel plated steel body; white nylon glide; 3/8 inch threaded rod
Mounting Option (Anchors)
16-gauge stainless steel plate; 3/8 inch zinc plated bolt; fasteners not included
Mounting Option (Cored In)
Down posts; 3 inch to 4 inch round hole required in concrete; anchor with epoxy cement

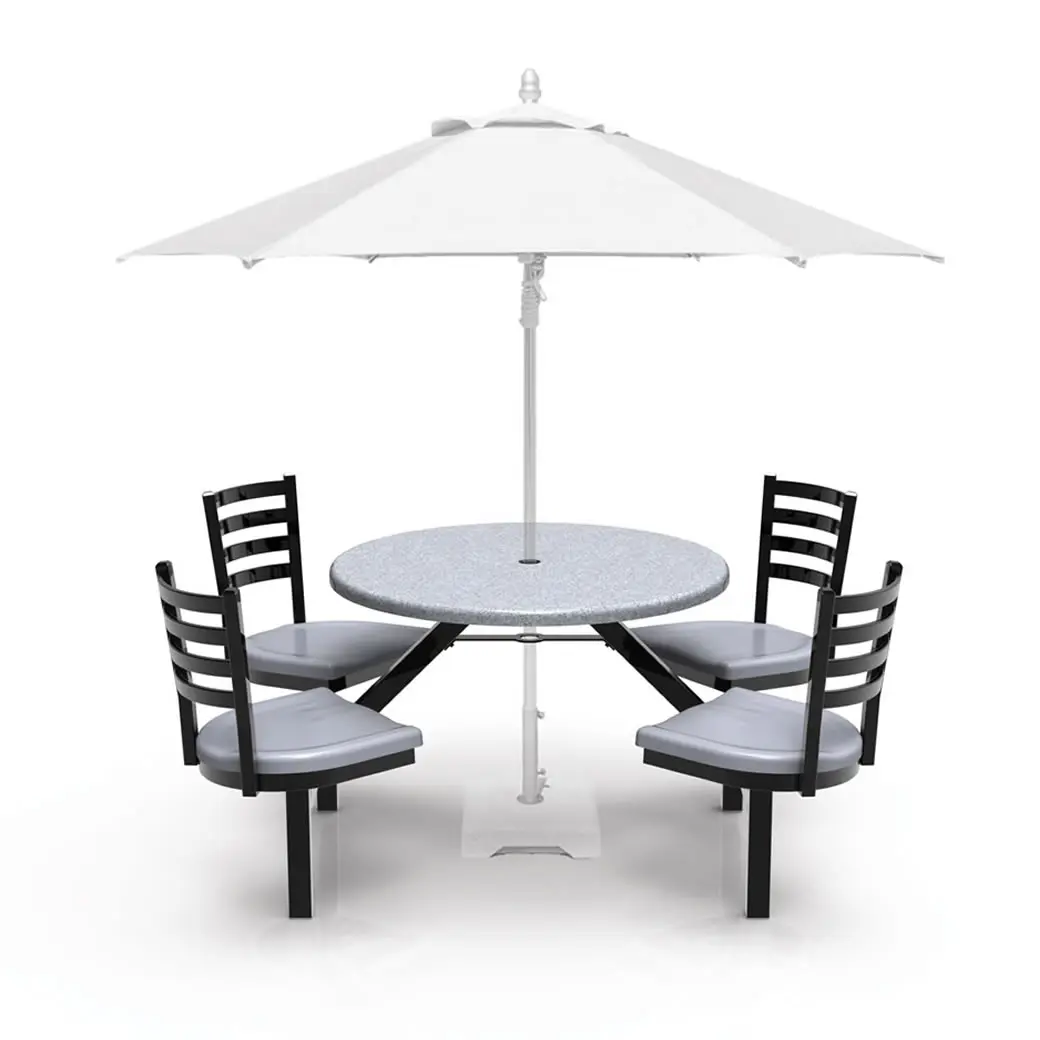

Umbrella Hole
1 and one half inch diameter; available on select models at upcharge; umbrella not included

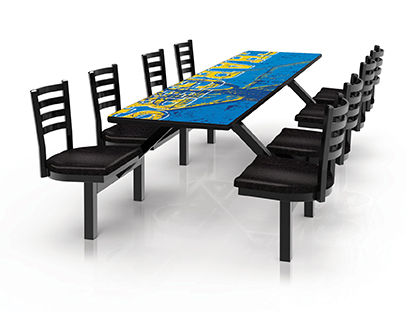

Custom Graphics
Available on round fiberglass tops only; logo top tables available with snow white fiberglass base
Wheelchair Access

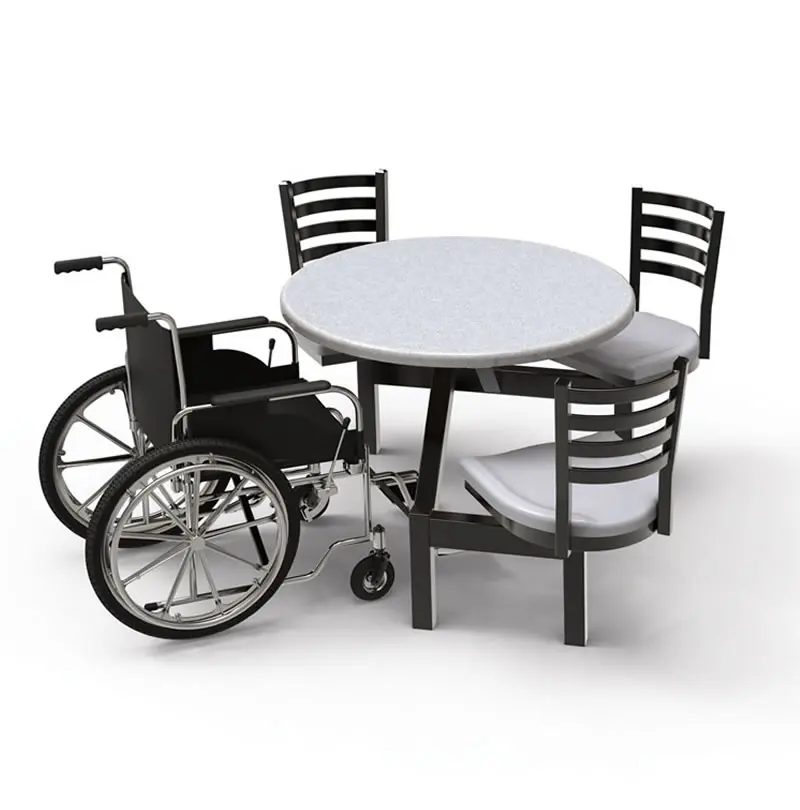

Available on 36 inch round, 48 inch round, 24 by 42 inch 2 seat rectangle, 24 by 96 inch, and 48 by 60 inch rectangular models
Warranty
5-year warranty (some exclusions may apply; see palmerhamilton.com/resources/warranty)
Ships
KD (knock down); assembly instructions included; frame assembly and seat and top attachment required
Made In
USA

Ideal For

Schools, colleges, and campuses that want to extend an indoor food court or cafeteria into an adjacent outdoor patio, courtyard, or covered outdoor dining area using the same cluster seating product family for a unified indoor and outdoor aesthetic.

Institutions designing or renovating food court spaces where cluster seating in a range of round and rectangular configurations, varying seat counts, and standard and pub heights creates the varied and engaging dining environment that encourages students and staff to actually use and enjoy the space.

Facilities teams managing high use outdoor dining areas that need permanently anchored or cored in cluster seating built from materials rated for weather, UV exposure, and daily cleaning without deteriorating across a typical institutional product lifecycle of ten or more years.

Schools and campuses that want to incorporate institutional identity into the dining space through custom fiberglass logo tops, giving the cafeteria or food court a branded, school spirited quality that connects students to the institution every time
they sit down to eat.

Get a Quote

Palmer Hamilton builds Covey for the schools, campuses, and communities that believe the dining experience should be as welcoming and well designed outside as it is inside, and as built to last as every other investment the institution makes in the spaces where students gather. Contact your Palmer Hamilton representative to design your Covey configuration and Do More with Your Space.
